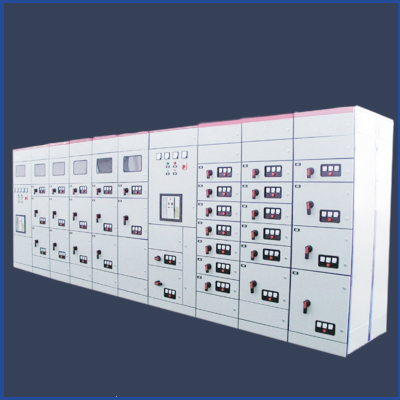

對于鈑金加工機柜而言其有著優良的外在形象，而長期的作業則會給其產生很大的危害，所以說對機箱機柜的鈑金件機柜開展的表面解決則會給其產生很高的危害。大家都知道，機箱機柜的機殼全是用鈑金件做成的。濟南機箱機柜廠家在對生產加工的機箱機柜進行工程驗收時要留意幾個方面：

For the sheet metal processing cabinet, it has a good external brand image, and long-term operation will cause great harm to it, so the surface treatment of the sheet metal cabinet of the cabinet will cause great harm to it. As we all know, the chassis of the cabinet is made of sheet metal parts. Jinan case and cabinet manufacturer should pay attention to several aspects when carrying out engineering acceptance for the case and cabinet produced and processed:

鈑金件機箱機柜不允許有人眼由此可見歪斜或部分歪、扭狀況存有。架構立柱與底座平整度為小于1.5mm。檢驗時以底座上表面為標準，以立柱上方內緣面為測點。

No human eye is allowed to see skew or partial skew or twist in the sheet metal case cabinet. The flatness between the frame column and the base is less than 1.5mm. During inspection, the upper surface of the base shall be taken as the standard, and the inner edge surface above the column shall be taken as the measuring point.

機箱機柜頂框與底座平行度為小于1mm。檢測點為底座上表面及頂框下表面，且相互之間標準。也可根據準確測量六面對角的長短，相距不可超出2.5mm來檢驗。有中擋板者，頂框與底座平行度可放開1.5mm，中擋板與頂框或底座平行度為小于1mm。

The parallelism between the top frame of the cabinet and the base is less than 1mm. The inspection points are the upper surface of the base and the lower surface of the top frame, and they are standard with each other. It can also be checked according to the accurate measurement of the length of the hexagonal diagonal, and the distance between them should not exceed 2.5mm. If there is a middle baffle, the parallelism between the top frame and the base can be released to 1.5mm, and the parallelism between the middle baffle and the top frame or base is less than 1mm.

上、底圍框的對角之差的平方根小于1.5mm。

The square root of the difference between the diagonal angles of the upper and lower enclosure frames is less than 1.5mm.

立柱不可以有歪曲狀況，各立柱與上、底框相接的兩邊工作交接線與框鄰近平面圖的平行度為小于0.5mm。

The columns shall not be distorted, and the parallelism between the working lines on both sides of the columns and the upper and bottom frames and the adjacent plan of the frame shall be less than 0.5mm.

支撐點插箱的滑軌，同一層的左、右滑軌所構成的工作臺面相對性底座上表面的平行度為1mm，且應確保插箱裝進后鄰近兩控制面板中間空隙之差的平方根不可超出0.6mm。

The parallelism of the work table formed by the left and right slide rails on the same layer of the slide rails supporting the plug-in box to the upper surface of the base is 1mm, and the square root of the difference between the two adjacent control panels after the plug-in box is installed shall not exceed 0.6mm.

江蘇奇峰電氣制造有限公司占地面積1800M?，一直致力于為顧客出示品質產品和技術咨詢。企業將進一步健全集新產品開發、設計方案、生產制造、檢驗、質保期、市場銷售、售后維修服務為一體的運營管理體系，并創建科學研究、健全、標準、效率的公司運行體制。

Jiangsu Qifeng Electric Manufacturing Co., Ltd. covers an area of 1800M?, We have been committed to providing customers with quality products and technical advice. The enterprise will further strengthen the operation management system integrating new product development, design scheme, production and manufacturing, inspection, warranty period, marketing and after-sales maintenance services, and create a scientific research, sound, standard and efficient company operation system.

如果您對我們的機箱機柜感興趣或者想了解更多詳細信息，歡迎點擊我們的在線客服http://m.hua155.com與技術員咨詢，或者直接撥打技術員電話咨詢，我們期待您的來電洽談！

If you are interested in our cabinet or want to know more details, please click our online customer service http://m.hua155.com Consult with the technician or call the technician directly. We look forward to your call to negotiate!
